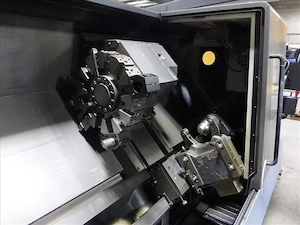

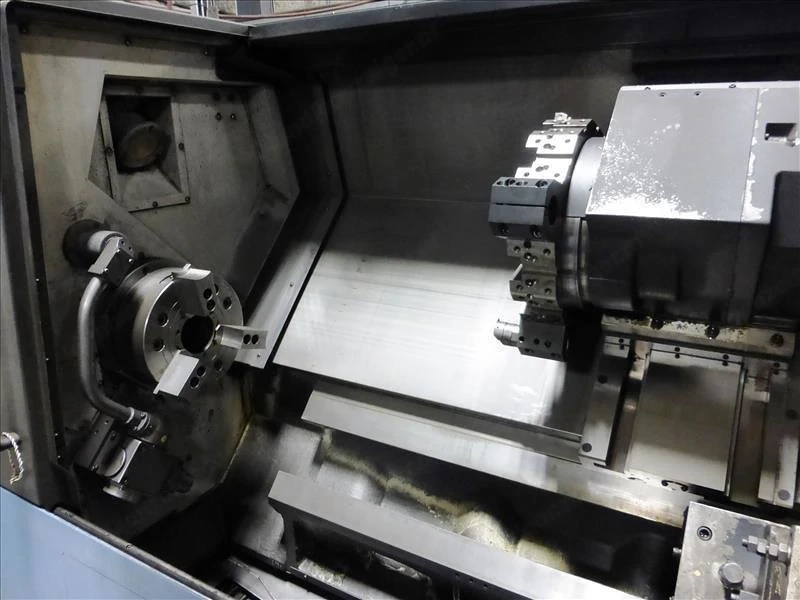

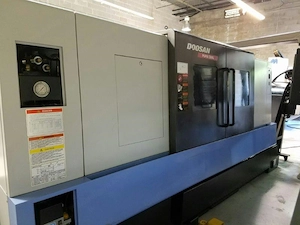

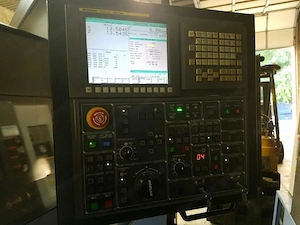

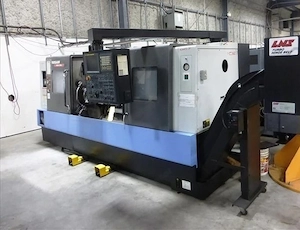

2010 Doosan Puma 300LC

Power: 45 kva, 220v 3-Phase
Overall Dimensions: 150 x 77 x 80 High
Overall Dimensions: 168 x 77 x 80 High with Chip Conveyor
Weight: 15000 lbs
Doosan Puma 300LC Specifications:
Capacity:
Max Turning Diameter: 15.7
Max Turning Length: 50.4
Max Bar Capacity: 4.05
Swing Over Bed: 22.4
Distance Between Centers: 52.8
X Axis Travel: 11.1
Z Axis Travel: 52.4
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-11
Spindle Bore: 4.5
Spindle Speed: 0 2800 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.97
Tailstock Quill Travel: 4.7

ID: 1778764940
